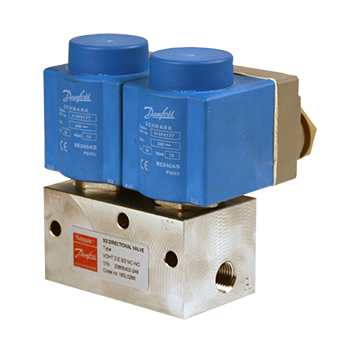

Solenoid Valves 3/2 Way Types VDM-VDHT-VDH

Application dedicated 3/2-way solenoid valve series for humidification and adiabatic cooling systems or
other applications where anti-drip/unloading functions are essential.

Details VDHT, VDH and VDM 3/2 way Zone-Drain-Valves:

• Inline valve type with flow ranges from 1.8, 15 and 30 l/min / 0.5, 4 and 8 GPM
• Max. pressure up to 210 bar / 3000 PSI
• Fluid: clean tap water and technical water (10µ absolute filtration , ß-value > 5000)
• Fluid and ambient temperature 3 – 50° C
• BSP and NPT thread port available

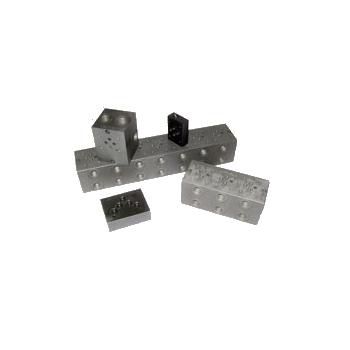

• Manifold for Cetop3 versions
• Big range of coils available
• Drain function for draining off and preventing water and nozzle drip
• Soft-Charge functionality preventing pressure peaks
