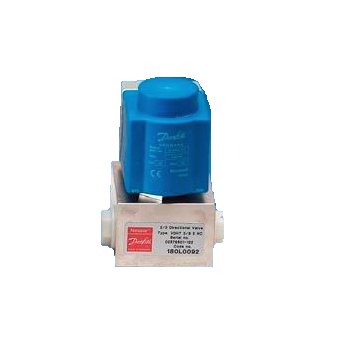

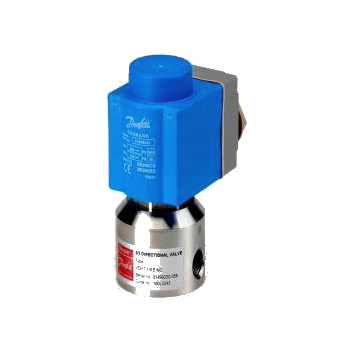

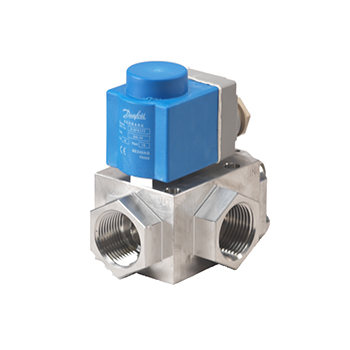

Solenoid Valves 2/2-Way Type VDHT

Broad range of 2/2-way solenoid valves, inline and integrated valve blocks.
Function: On/Off pilot operated poppet valve, electrically activated by 1 coil.

Details:

• 5 valve sizes with 1/4”, 3/8”, 1/2”, 3/4" and 1” port sizes
• Pressure levels 100, 140, 160 and 210 bar / 1450, 2000, 2300 and 3000 PSI depending on type
• Fluid: water, water mixed with cleaning detergent, oil
• Coned seat design with Teflon results in high dirt tolerance and no internal leakage
• Medium and ambient temperature 2° – 80° C / 36°-176° F (90°C/194° F with Viton seals)
• Valve design: poppet type – leakage free from pressure side
• Housing in stainless steel AISI 304, poppet in AISI 316
• NC and NO versions
• Big range of coils available
• Both BSP and NPT threads
• Manual bypass as an option (normally used in fire fighting applications)
• Atex conform versions available
• Compact and simple block solution for 2-5 multiple functions
• Minimized installation time and material cost
• Very effective in narrow environments
• Manifold for Cetop 3 and Cetop 5
