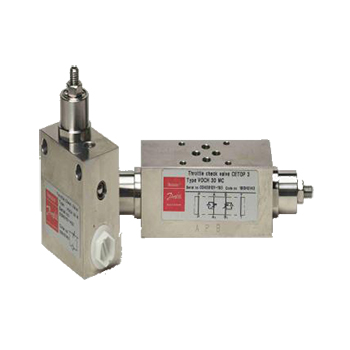

Throttle Valves according to the needle controlled valve principle, optional with check valve
VOH and VOCH details:
• Inline and cetop valve type with flow control range from 3 to 30 l/min / 0.8 to 8 GPM
• Max. pressure 140 bar / 2000 PSI
• Fluid: clean tap water (10µ absolute filtration, ß-value > 5000)
• Fluid and ambient temperature 3° – 50° C / 37° – 122° F
• Throttle for both directions
• Version with check valve available (one way restrictor)
• Manifold version for Cetop3
• Can be combined with VDH 30 EC 4/3
• BSP 3/8” port size for inline
VOH 30 P details (generally VOH 30PM):
• Pressure compensated throttle valve, manually controlled
• Inline valve type with flow control range from 3 to 30 l/min / 0.8 to 8 GPM
• Max. pressure 140 bar / 2000 PSI
• Fluid: clean tap water (10µ absolute filtration, ß-value > 5000)
• Fluid and ambient temperature 3° – 50° C / 37° – 122° F
• Constant flow independently of pressure in the system
• BSP 3/8” port size for inline
